Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage
Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage

큰 이미지 :  Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage

제품 상세 정보:
Place of Origin: China
브랜드 이름: GreFlow Energy
인증: MSDS UN38.3
Model Number: Power Wall 20kw lithium battery
결제 및 배송 조건:
Minimum Order Quantity: 2 packs
가격: inquiry us
Packaging Details: Standard Export UN Box
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 200 per month
접촉
상세 제품 설명
Product name: Energy Storage Power Wall 20kw Lithium Battery Battery Cell: LiFePo4 Prismatic battery cell
Battery pack construction: 16S1P Dimension: 510*250*400MM
Net Weight: 185kg Weight with package: 185KG
Cycle life: 6000 times at 80% DOD Cell type: LiFePO4 3.2V 200Ah cell
Communication protocolsion: CAN and RS485 Support Inverter: Sorlark, Deye and other most of inverter brands
Extent: support 8pcs connection in parallels Application: for home energy storage system

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 0
Descriptions of Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage


Technical specification
Battery Type LiFePo4 (Lithium Iron Phosphate Battery)
Norminal Voltage (V) 51.2V
Norminal Energy (KWh) 20.48KWH
Design Capacity 400Ah
Design Life 15 Years

Product Size
Size LWH; 510*250*400MM
Weight 185KG

Technical Parameters
Cycle life > 6000 times 80% DOD
Operating Voltage Range 40V- 58.4V
Charging Voltage DC 58.4V
Charging/Discharging Current (A) Same Port 100A
Internal Resistance <30mΩ

BMS Parameters
Self-Consumption <2W
Rated Voltage 51.2V
Balance Current 30-65 (mA)
Communication Method CAN / RS485 / RS232
Information Storage 500 Strip
Charging limiting Current can be set through upper computer

Ambient Temperature
Operating Temperature -10°C ~ 50°C
Storage Temperature 10°C ~ 50°C
Humidity 15% ~ 75%

Warranty
Warranty time 5 Years

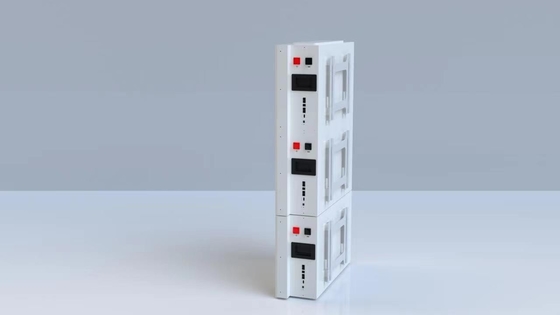

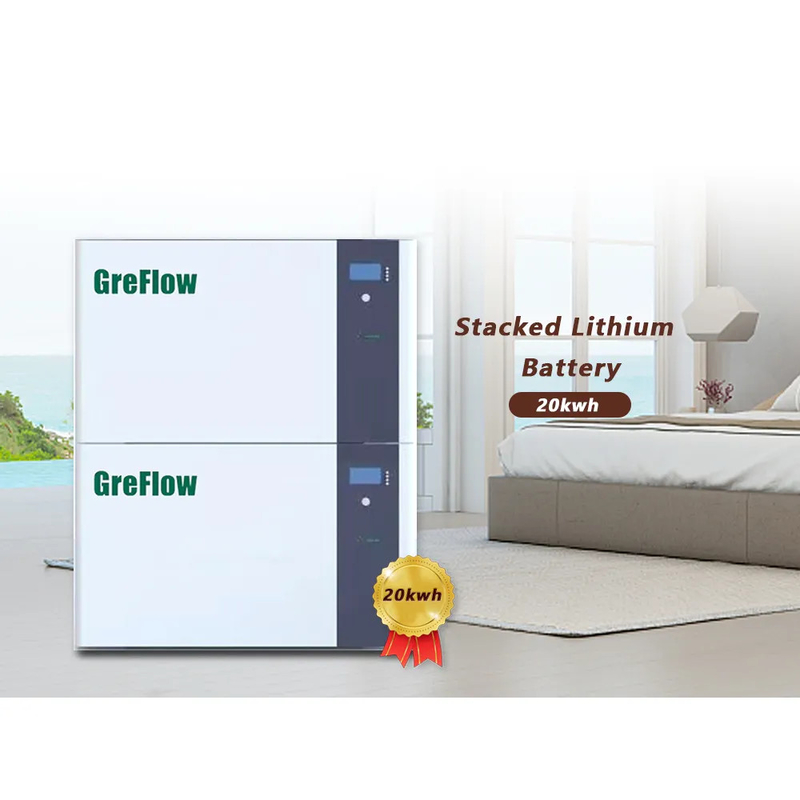

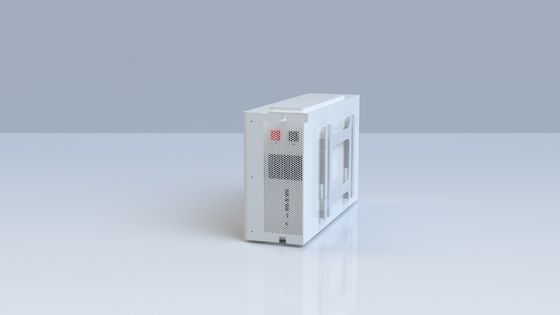

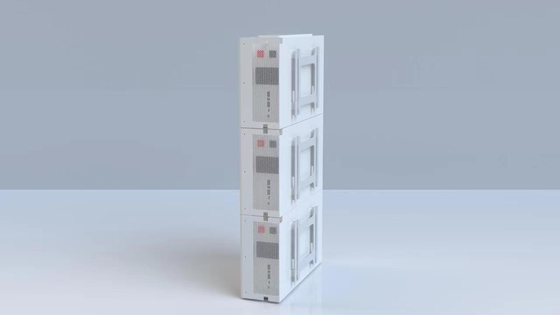

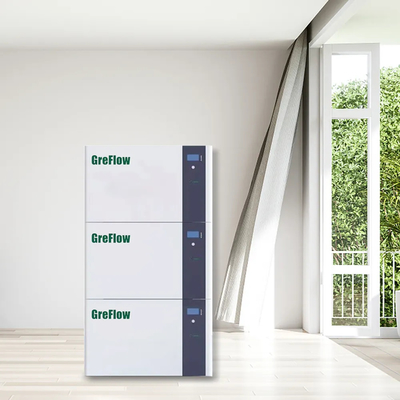

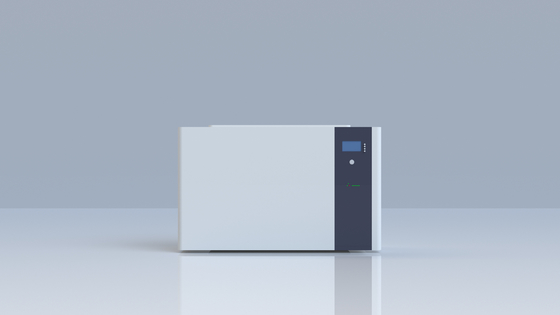

Image display of Power Wall 20kw Lithium Battery 20kw Solar Battery

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 1

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 2Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 3



If you need inverter with our Power wall storage battery, we can supplyPower Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 4



Compatible Inverter brands of Smart Energy Storage Off-Grid Solar Battery Storage

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 5

The Features of Wall Mount Battery Replace Powerwall 2 10kwh Lifepo4 Battery 48V 200Ah Lithium Akku

1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE and IEC in applying.
5. Modular. Modular expansion, support 8pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.

max support 15pcs connection in parallels

Solution Diagram
Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 6

What is a solar battery and how does it work?
Solar panels make more electricity during the middle of the day than they do at any other time.
The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.

Solar batteries are able to store that extra solar energy so you can use it later on.
Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.
What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.
Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 7
Features of Wall Power Battery Replace Tesla Powerwall 10 KWH 2 Specs 48v 200ah Lithium Battery

Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.
Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.
BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.
Charging: Designed to work with AGM chargers.
Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.
Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 8

The Package of wall mounted battery 48V 200Ah wall mount 10kwh powerwall battery
Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 9

We also have 30Kwh Wall standby energy storage battery for your choice

Inquiry our sales for details

Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 10

the Shipping Method



You can choose DHL, Fedex UPS to door if it is urgent

You can choose By sea to door for sample and not urgent

For batch order you can choose by sea to port

We have MSDS, UN38.3 test report for kinds shipping ways.



Power Wall 20kw Lithium Battery 20kw Solar Battery Lifepo4 Battery Energy Storage 11
